High Gain Antenna

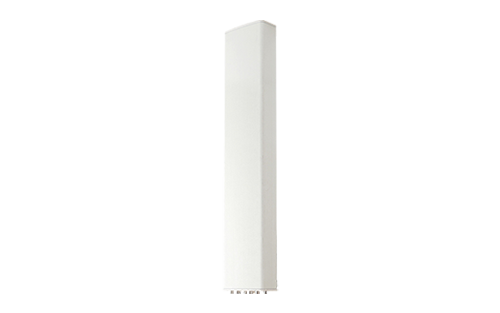

1L4M

1L4M

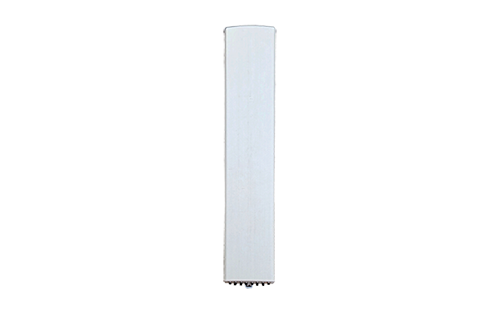

2L4M

2L4M

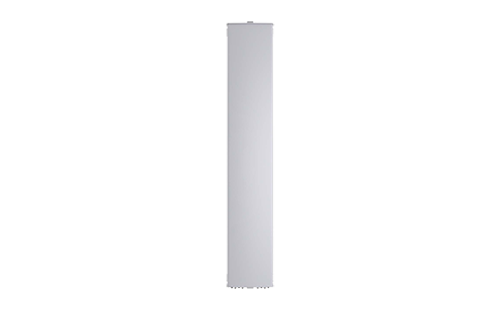

2L6M

2L6M

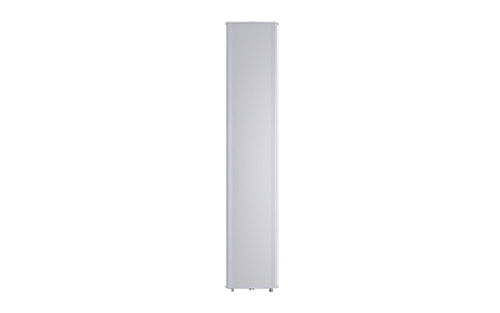

2L8M

2L8M

Features

  • Multi-band, Multi-port
  • Low-loss, High-efficiency Design
  • Compact Design with Low Wind Load
  • Modular Design Offering Various Variants
  • Excellent Low PIM (Passive Intermodulation) Performance
  • ODM/JDM/OEM Capabilities
  • Wide Frequency Range: 617 MHz ~ 4.0 GHz
  • High-gain Solutions for Extended Cellular Coverage

Product Categories

  • 6 Ports
  • 10 Ports
  • 14 Ports
  • 20 Ports
  • FDD + TDD Hybrid
  • TDD MIMO (Time Division Duplex Multiple Input Multiple Output)
  • 64T64R
  • Customized
  • 8 Ports
  • 12 Ports
  • 16 Ports
  • FDD (Frequency Division Duplex)
  • FDD MIMO (Frequency Division Duplex Multiple Input Multiple Output)
  • 32T32R

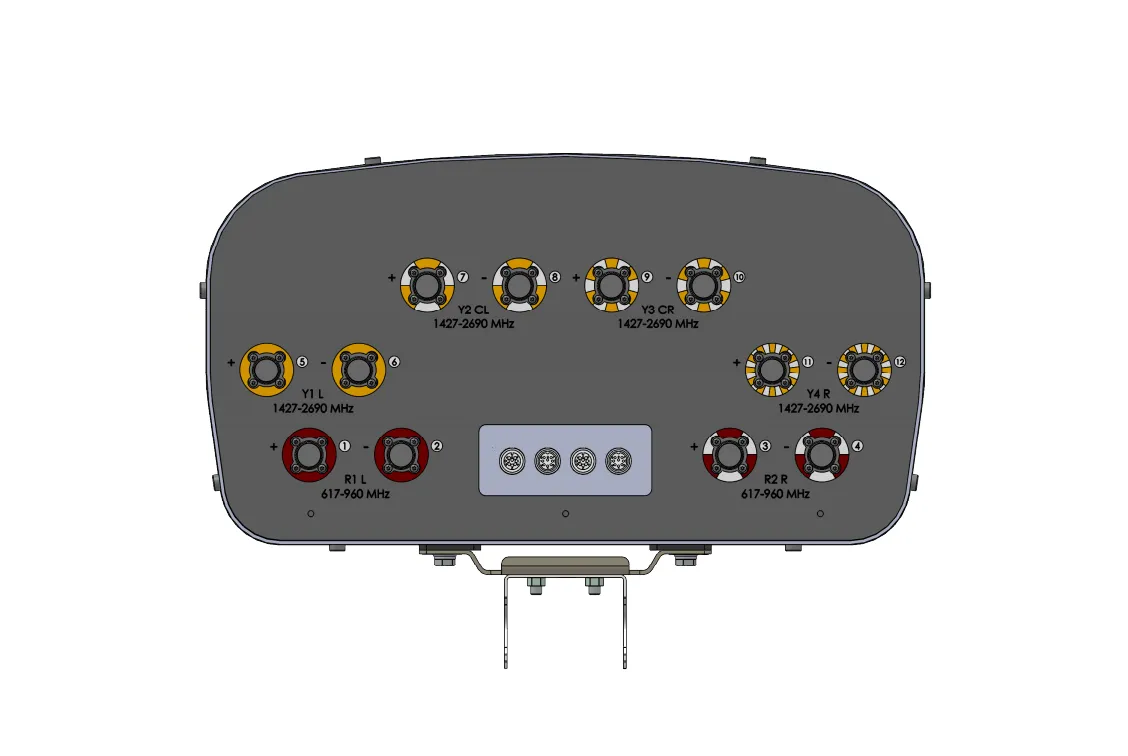

2A4U

2A4U

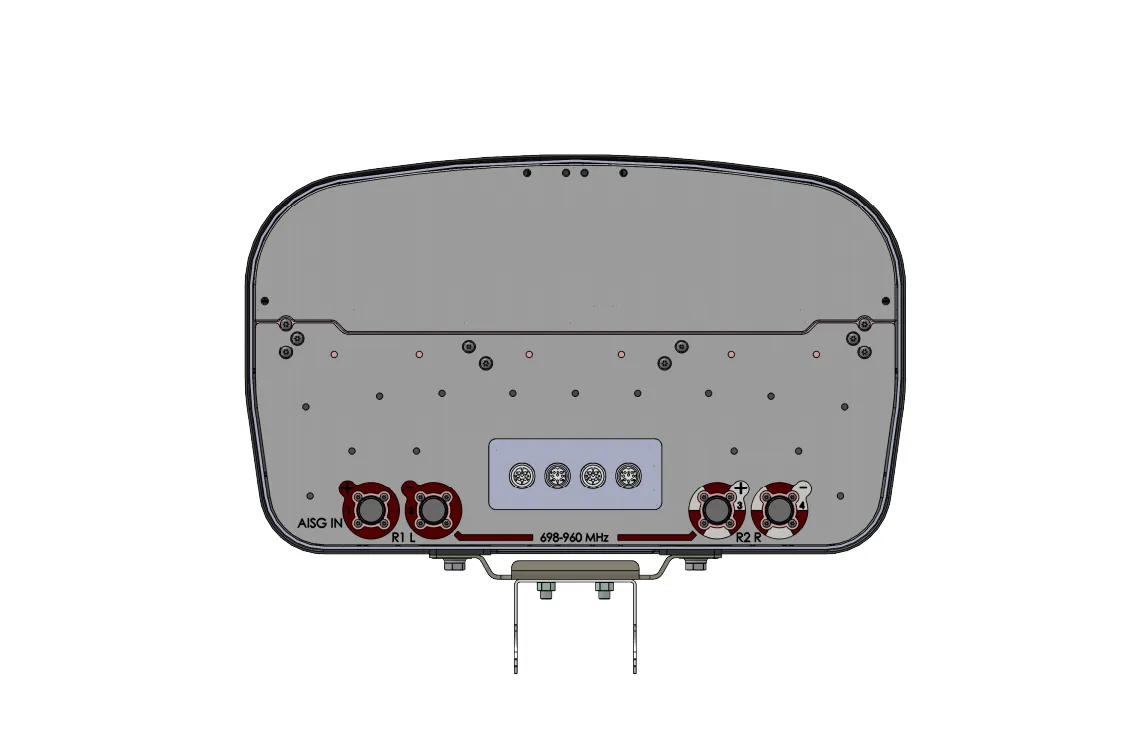

2L

2L

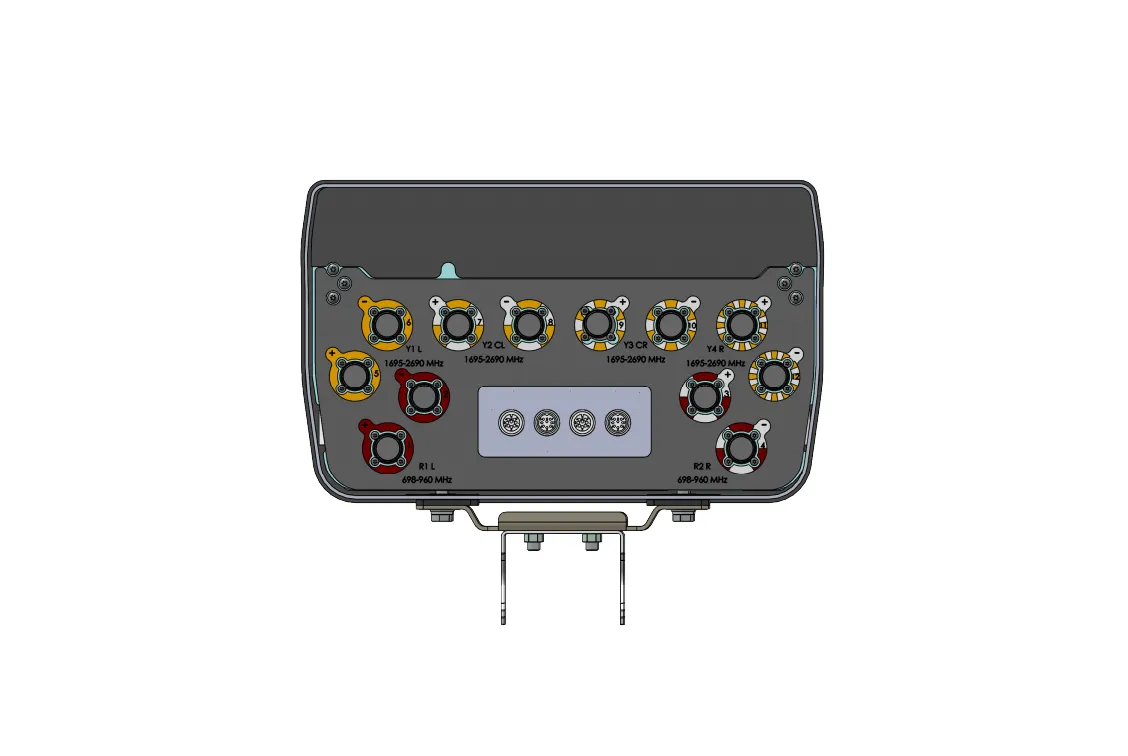

2L2M

2L2M

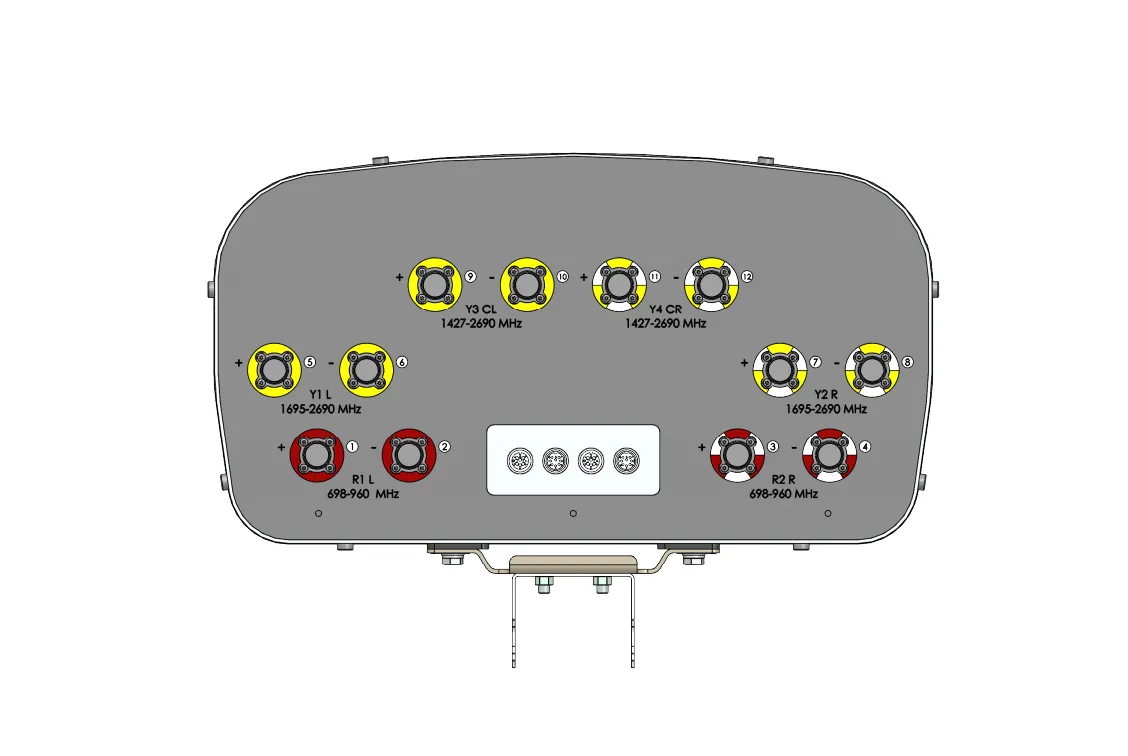

2L2M2U

2L2M2U

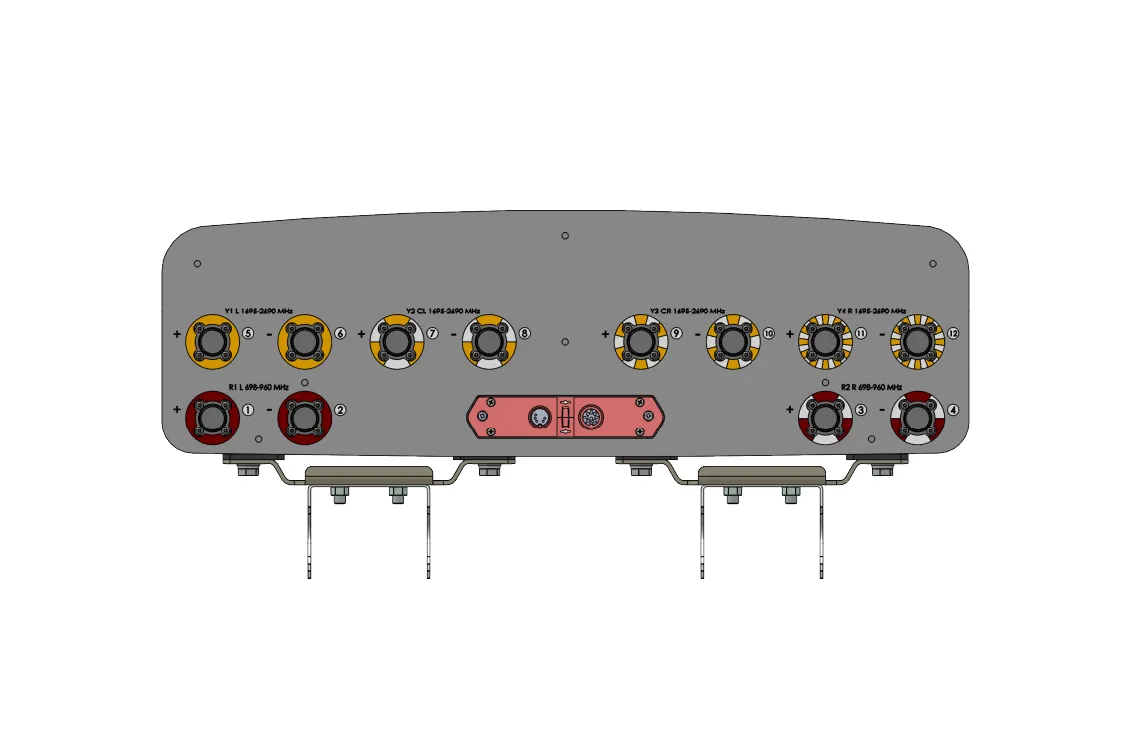

2L4M

2L4M

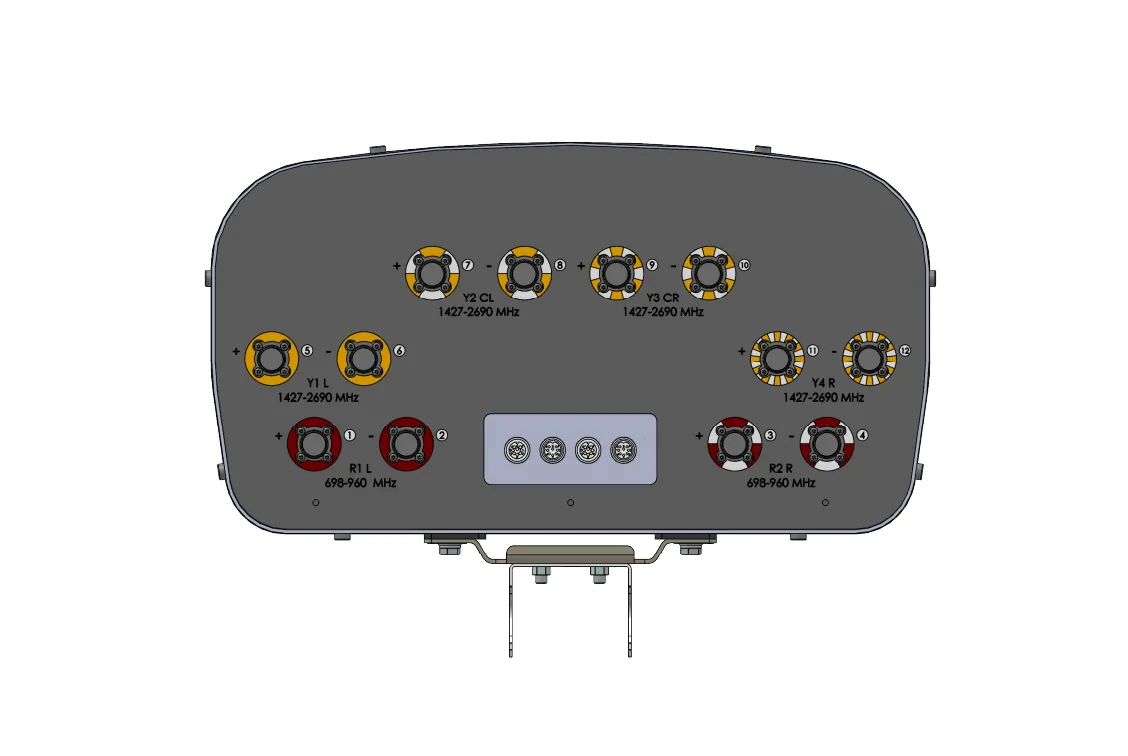

2L4U

2L4U

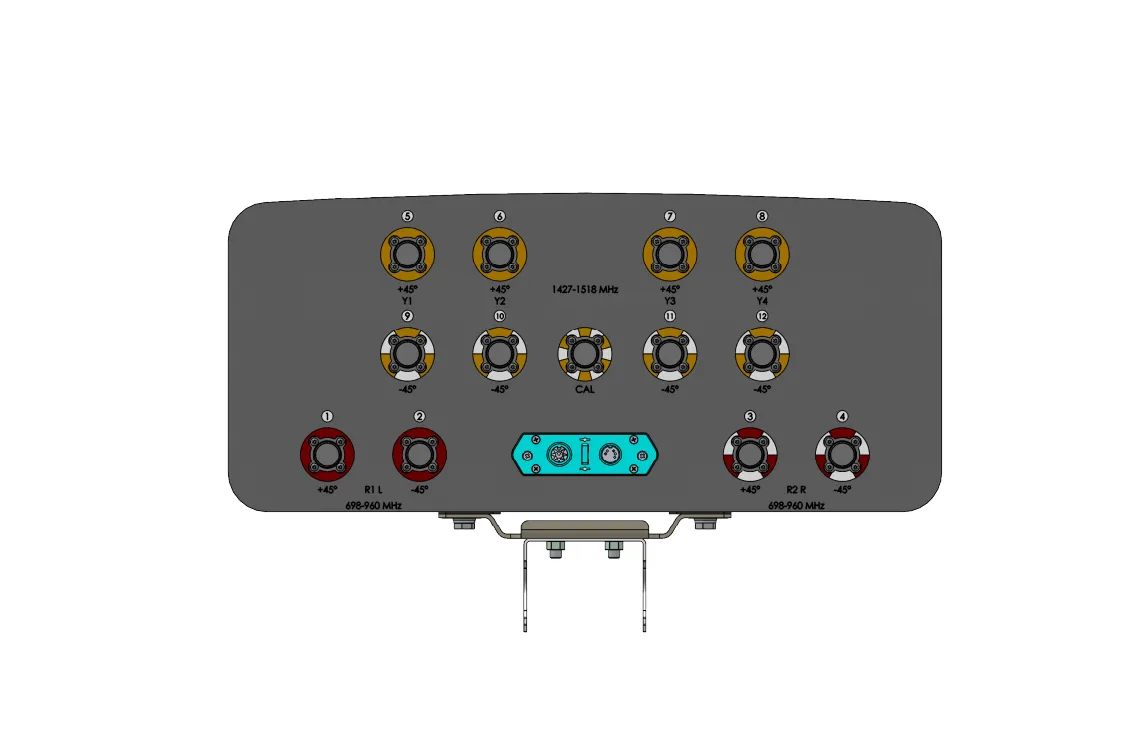

2L-8T8R

2L-8T8R

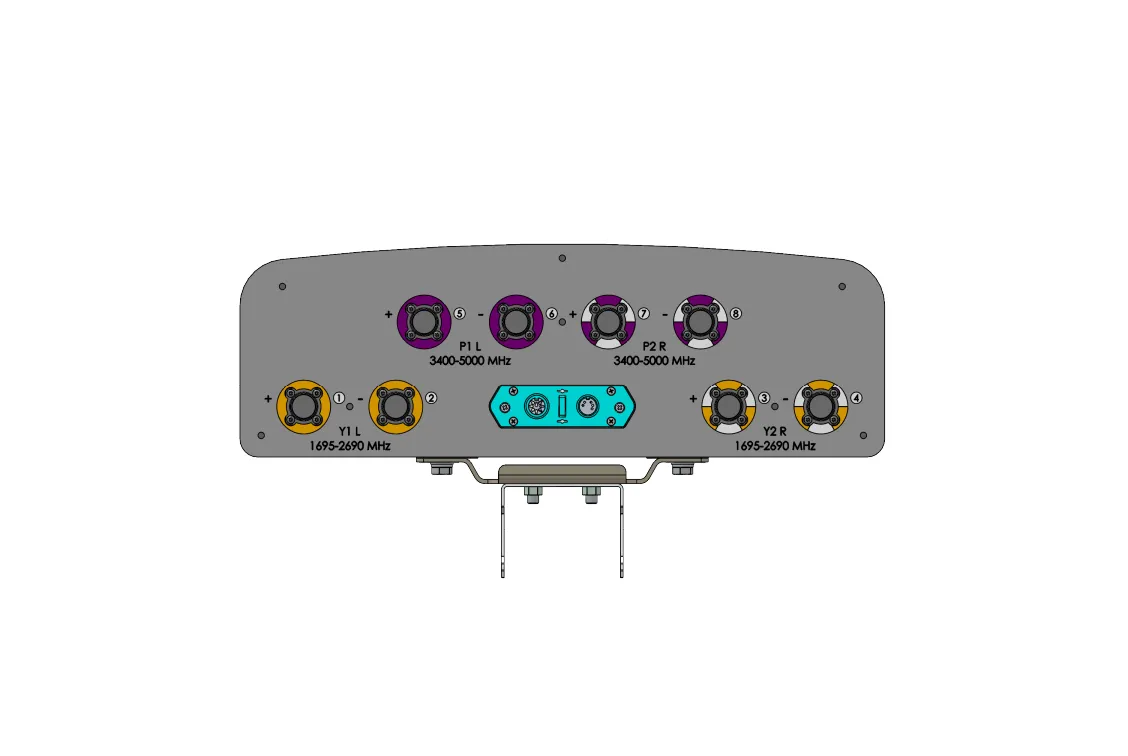

2M2C

2M2C

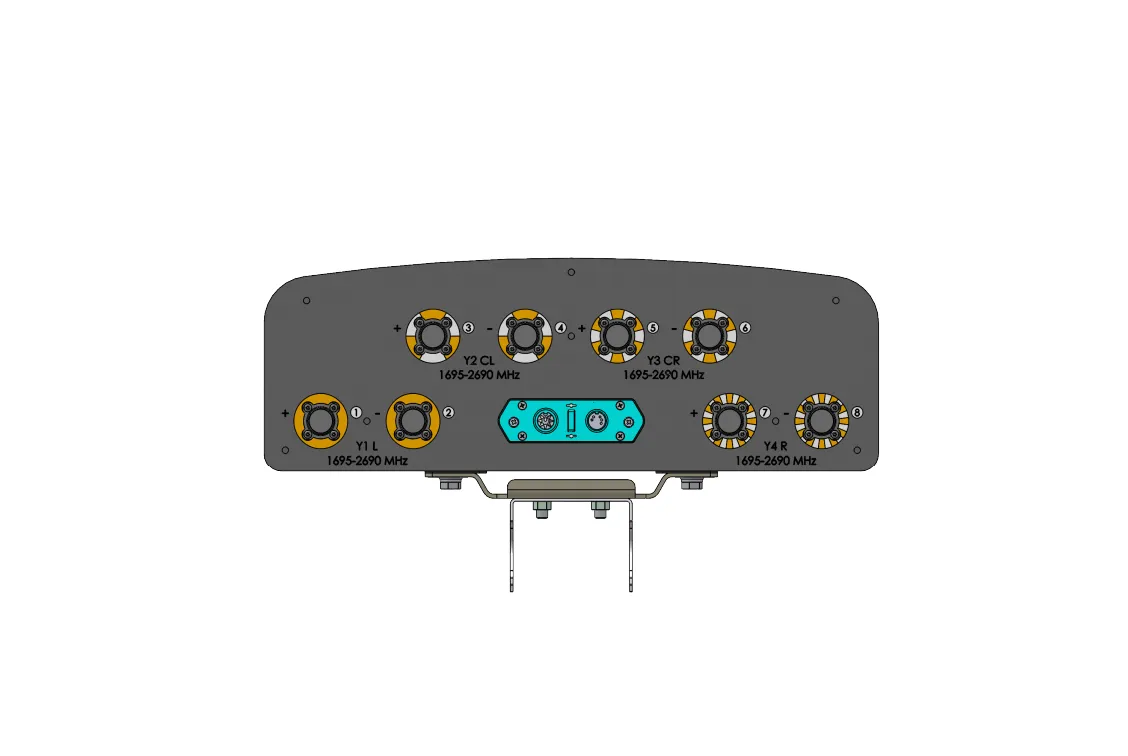

4M

4M

No. Platform Length (m) Width (mm)
1 1L2M, 1L4M 1.4/2.0/2.4 300
2 2L2M 2.0/2.4 400
3 2L4M 2.6 400
4 2L4M 1.4/2.0/2.4 469
5 FDD2L8M+TDD 2.8 599
6 2A4U 1.4/2.0/2.4 640
7 2L+4M+2H 1.4/2.0/2.4 558
L:698~960Mhz; M:1695~2690Mhz; H:3300-5000Mhz;
A:617~960Mhz; U:1427-2690Mhz
